Blovey Hardness Tester HBRVS-187.5

1. he body part of the product is formed in one go through a casting process and has undergone long-term aging treatment. Compared to the panel assembly process, long-term use has minimal deformation and can effectively adapt to various harsh environments;

2. Automotive paint, with high quality and strong scratch resistance, remains shiny and new after years of use;

3.  Ready to use upon startup, without the need to install weights;

4. It adopts a large screen touch LCD display interface, with rich display content and convenient operation;

5. The electronic closed-loop control applies the test force, with an accuracy of 5 ‰. The force sensor controls the test force, fully realizing the automatic operation of applying, maintaining, and removing the test force;

6. The hardness values of each scale can be converted to each other through measurement;

7. The body is equipped with a micrometer and a high-definition micro optical system to make the observation readings clearer and reduce errors;

8. Equipped with a built-in micro printer and optional RS232 data cable, it can be connected to the computer through a super terminal to export measurement reports.

9. Equipped with three testing methods of Brinell, Rockwell, and Vickers, with multi-level testing force, it can meet various hardness testing requirements;

Standard configuration：

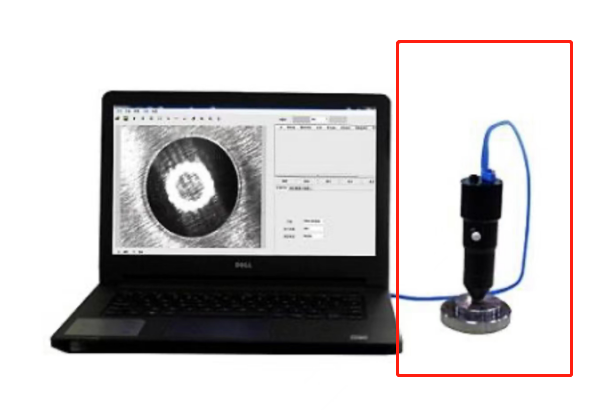

Brinell Camera

equipped with USB camera, laptop and data read and write software

USB digital microscope:

Excellent image quality

USB 2.0 connection

Measurement ranges:  2.4 - 6 mm

Brinell Magnifier 20x

20x magnification

Measurement range: 2.4 - 6 mm

Resolution 0.05 mm

Application scope:

Suitable for measuring the hardness of quenched, tempered, annealed, cold hard castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel, etc.

Technical parameters:
